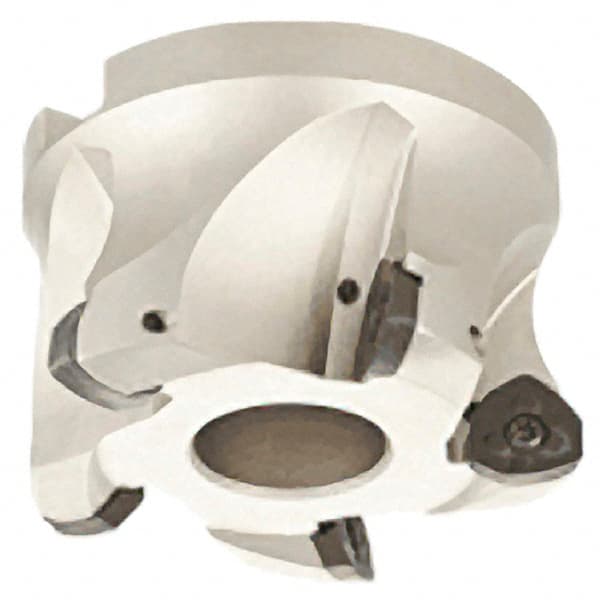

Iscar - 5 Inserts, 2.18" Cutter Diam, 0.08" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 0.5669" Keyway Width, 1-3/4" High, FF WO.. Inserts, Series FeedMill
Item #: 72673833
Brand: Iscar
Model #: 3103423
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.1800 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | FeedMill |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | FF WO.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Through Coolant | Yes |
| Complete Insert Compatibility | FF WOCT 09T320T; FF WOMT 09T320-CS; FF WOMT 09T320T; FF WOMW 09T320T |
| Keyway Width (Decimal Inch) | 0.5669 |
