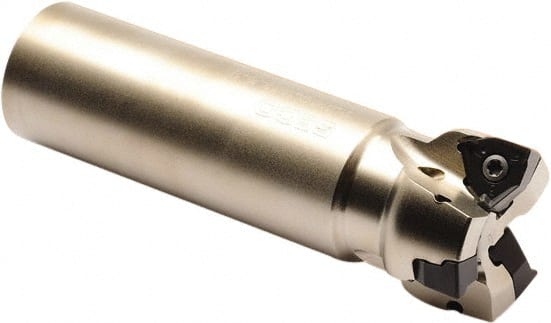

Seco - 25mm Cut Diam, 4mm Max Depth of Cut, 25mm Shank Diam, 101mm OAL, Indexable Square Shoulder End Mill - XNEX 04 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Square 6
Item #: 72776826
Brand: Seco
Model #: 67826
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 101.00 |
| Overall Length/Projection (Decimal Inch) | 3.9764 |
| Lead Angle | 90 |
| Series | Square 6 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 34.00 |
| Head Length (Decimal Inch) | 1.3386 |
| Weldon Flat | Yes |
| Insert Compatibility | XNEX 04 |
| Shank Length (Decimal Inch) | 2.6378 |
| Shank Length (mm) | 67.00 |
| Maximum RPM | 26300 |
