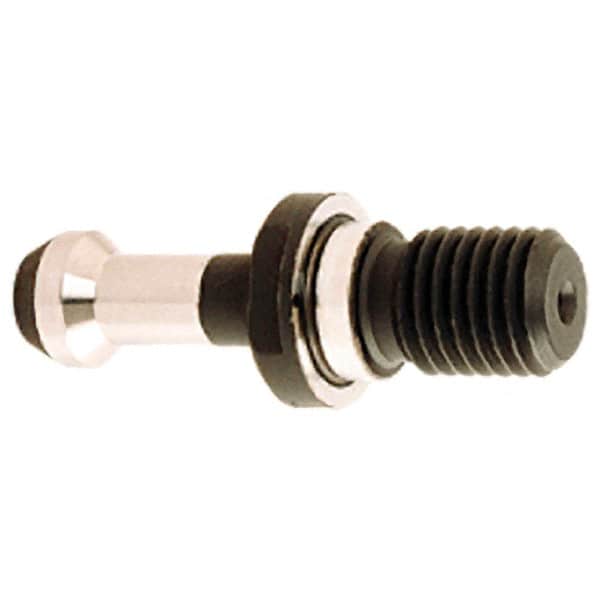

Iscar - BT50 Taper, M24x3 Thread, 30° Angle Radius, Standard Retention Knob - 3.3465" OAL, 0.9055" Knob Diam, 1.7717" from Knob to Flange, 0.2362" Coolant Hole, Through Coolant
Item #: 72804099
Brand: Iscar
Model #: 4504442
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | BT50 |
| Thread Size | M24x3 |
| Angle Radius | 30.00 |
| Knob Diameter (Decimal Inch) | 0.9055 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.6693 |
| Overall Length (Decimal Inch) | 3.3465 |
| Knob to Flange Length (Decimal Inch) | 1.7717 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
