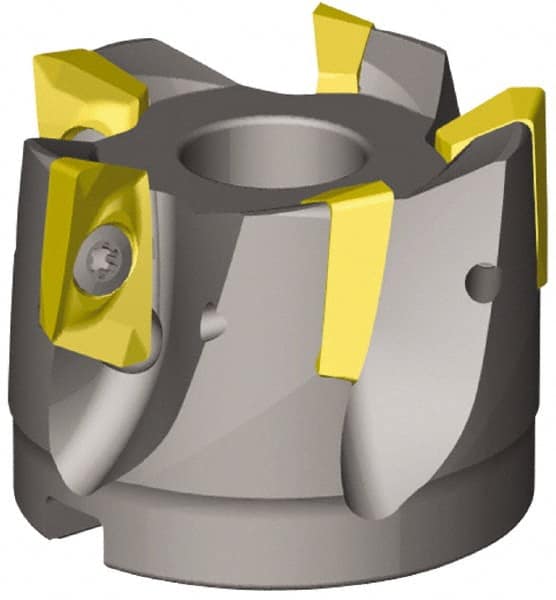

Kennametal - 8 Inserts, 6" Cut Diam, 2" Arbor Diam, 0.71" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, EC18.., EP18.. Insert Compatibility, Through Coolant, Series Mill 1-18
Item #: 73005167
Brand: Kennametal
Model #: 2267618
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | EC18.., EP18.. |
| Series | Mill 1-18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | M1D600E1808S200L200 |
| Number of Flutes | 8 |
| Keyway Width (Decimal Inch) | 0.7600 |
| Maximum RPM | 13740 |
