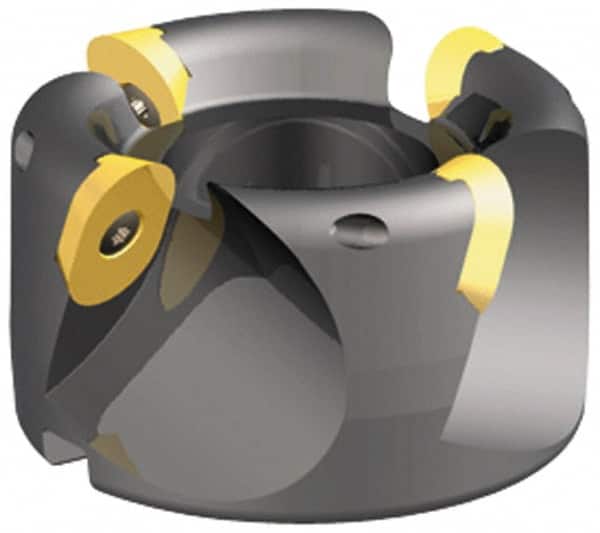

Kennametal - 4 Inserts, 2.385" Cut Diam, 1" Arbor Diam, 0.49" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, LFEW 353... Insert Compatibility, Series RPF
Item #: 73005514
Brand: Kennametal
Model #: 1025448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3850 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | LFEW 353... |
| Series | RPF |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.4900 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | KSSR |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Maximum RPM | 16700 |
