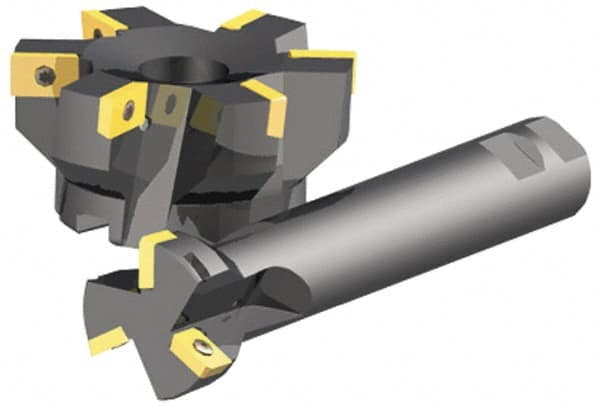

Kennametal - 6 Inserts, 4" Cut Diam, 1-1/4" Arbor Diam, 0.76" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.97" High, GDXMP 2004, SPEX 432, SPMT 432 Insert Compatibility, Series KSSZR
Item #: 73005647
Brand: Kennametal
Model #: 1024829
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.9700 |
| Insert Compatibility | GDXMP 2004, SPEX 432, SPMT 432 |
| Series | KSSZR |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KSSZR |
| Number of Flutes | 6 |
| Maximum RPM | 5900 |
