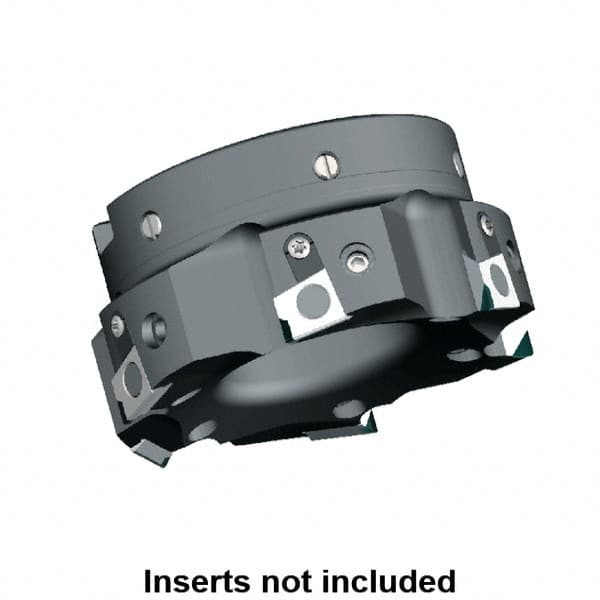

Kennametal - 4 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 0.394" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.57" High, BGHX 15L5... Insert Compatibility, Through Coolant, Series Fix-Perfect
Item #: 73005944
Brand: Kennametal
Model #: 1805720
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Clamp |
| Number of Flutes | 4 |
| Maximum RPM | 20051 |
