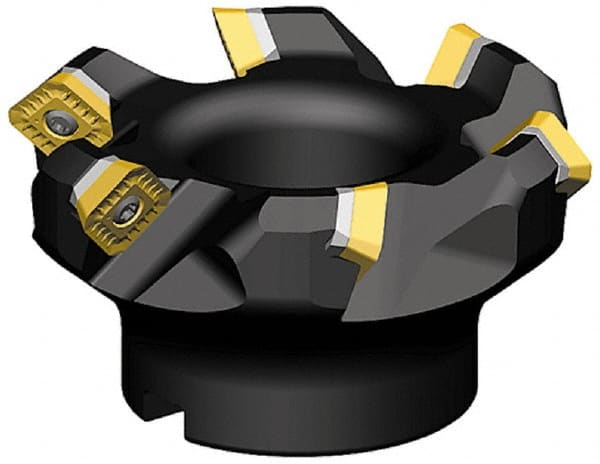

Kennametal - 199.9mm Cut Diam, 2" Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 12 Inserts, SEKT 1404... Insert, Right Hand Cut, 12 Flutes, Series KSSM
Item #: 73006009
Brand: Kennametal
Model #: 1817939
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 199.90 |
| Cutting Diameter (Decimal Inch) | 7.8700 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SEKT 1404... |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | KSSISR |
| Number of Flutes | 12 |
| Keyway Width (Decimal Inch) | 1.0100 |
| Maximum Body Diameter (Decimal Inch) | 8.4100 |
| Maximum RPM | 11300 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
