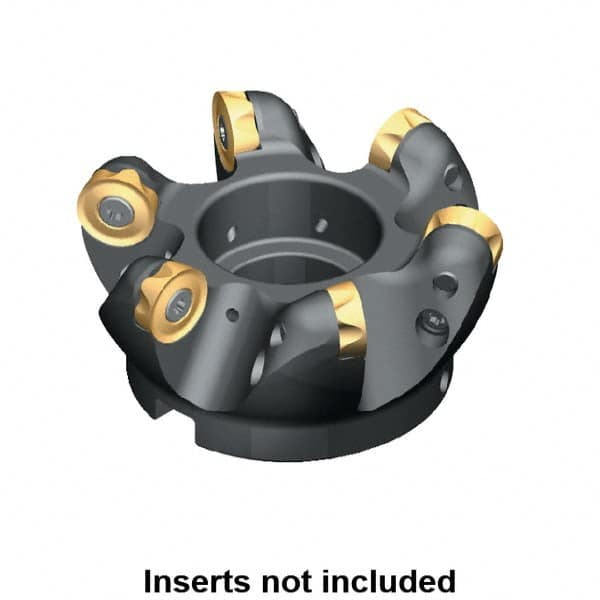

Kennametal - 2" Cut Diam, 1/2" Max Depth, 3/4" Arbor Hole, 3 Inserts, KSRM RCGT 86 Insert Style, Indexable Copy Face Mill - 15,500 Max RPM, 2" High, Through Coolant, Series KSRM
Item #: 73008328
Brand: Kennametal
Model #: 2610689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KSRM |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | KSRM RCGT 86 |
| Through Coolant | Yes |
| Maximum RPM | 15500 |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGT86ELF; RCGT86SHF |
