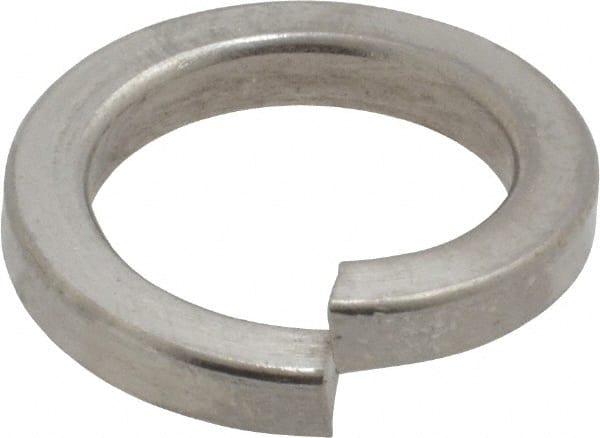

Value Collection - M14, 14.2mm ID, 3mm Thick High Collar Split Lock Washer - 18-8 Austenitic Grade A2 Stainless Steel, Uncoated, 14.2mm Min ID, 14.7mm Max ID, 21.1mm Max OD
Item #: 73018814
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
High collar split lock washers are thicker than standard split lock washers. They have a smaller outside diameter that is compatible with small-diameter screws.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | High Collar Split Lock Washer |
| Screw Size | M14 |
| Material | Stainless Steel |
| Material Grade | 18-8; Austenitic Grade A2 |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 14.20 |
| Thickness (mm) | 3.00 |
| Minimum Inside Diameter (mm) | 14.20 |
| Maximum Inside Diameter (mm) | 14.70 |
| Maximum Outside Diameter (mm) | 21.10 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | DIN 7980 |
