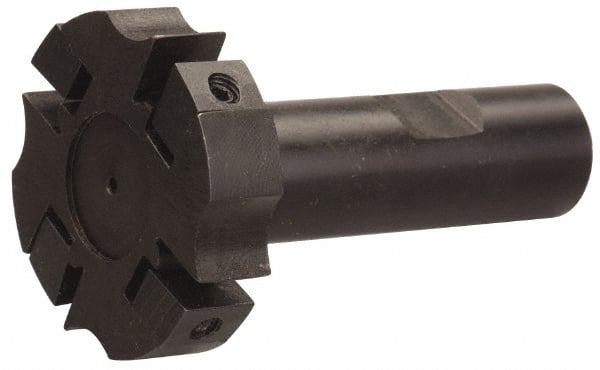

APT - Shank Connection, 3/8" Cutting Width, 7/16" Depth of Cut, 2" Cutter Diam, 4 Tooth Indexable Slotting Cutter - 1" Shank Diam, SM24 Toolholder, CTA 2 Insert, Right Hand Cutting Direction
Item #: 73021065
Brand: APT
Model #: SM2410R-2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Cutter Diameter (Inch) | 2 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 4 |
| Toolholder Style | SM24 |
| Series | Slot Master |
| Insert Style | CTA 2 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Cutting Width (Decimal Inch) | 0.5300 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 0.3300 |
| Shank Length (Decimal Inch) | 2.6700 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | CTA-2 |
