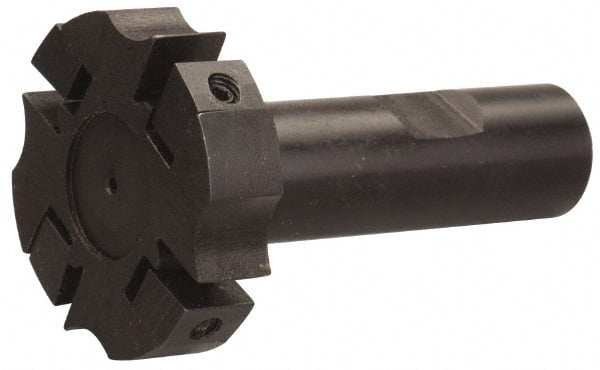

APT - Shank Connection, 0.72" Cutting Width, 15/16" Depth of Cut, 3" Cutter Diam, 4 Tooth Indexable Slotting Cutter - 1" Shank Diam, SM34 Toolholder, CTA 6 Insert, Right Hand Cutting Direction
Item #: 73021149
Brand: APT
Model #: SM3410R-6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.7200 |
| Maximum Depth of Cut (Decimal Inch) | 0.9370 |
| Cutter Diameter (Inch) | 3 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 4 |
| Toolholder Style | SM34 |
| Series | Slot Master |
| Insert Style | CTA 6 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Decimal Inch) | 0.7200 |
| Maximum Cutting Width (Decimal Inch) | 1.0250 |
| Radius | No |
| Rake | Positive |
| Cutter Body Width (Decimal Inch) | 0.6900 |
| Shank Length (Decimal Inch) | 2.3100 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | CTA-6 |
