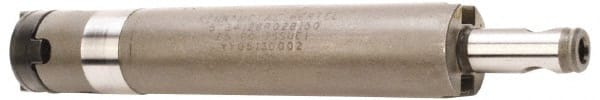

Kennametal - 1.3 Inch Nose Diameter, 4.3 Inch Projection, 16 Connection Size, Drilling Head Extension - 5.906 Inch Overall Length, 3.9 Inch Body Length, Includes Clamping Screws, Drive Ring
Item #: 73162273
Brand: Kennametal
Model #: 1134512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Connection Size | 16 |
| Projection (Decimal Inch) | 4.3000 |
| Projection (mm) | 109.22 |
| Nose Diameter (mm) | 33.02 |
| Nose Diameter (Decimal Inch) | 1.3000 |
| Overall Length (mm) | 150.01 |
| Overall Length (Decimal Inch) | 5.9060 |
| Body Length (mm) | 99.06 |
| Body Length (Decimal Inch) | 3.9000 |
| Includes | Clamping Screws; Drive Ring |
