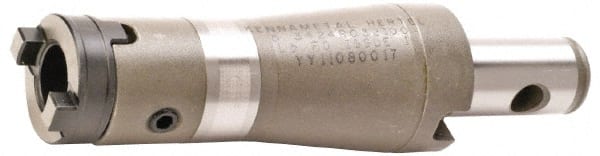

Kennametal - Drilling Head Reducers Series: HTS Reduced Connection Size: 22
Item #: 73162422
Brand: Kennametal
Model #: 1134650
Exact Tooling IR#: 04
Product Specifications
Drilling Head Reducers; Series: HTS ; Reduced Connection Size: 22 ; Shank Connection Size: 50 ; Projection (Decimal Inch): 3.6200 ; Projection (mm): 91.95 ; Nose Diameter (mm): 39.62
| Series | HTS |
| Reduced Connection Size | 22 |
| Shank Connection Size | 50 |
| Projection (Decimal Inch) | 3.6200 |
| Projection (mm) | 91.95 |
| Nose Diameter (mm) | 39.62 |
| Nose Diameter (Decimal Inch) | 1.5600 |
| Body Length (mm) | 80.01 |
| Body Length (Decimal Inch) | 3.1500 |
| Maximum Diameter (mm) | 80.01 |
| Maximum Diameter (Decimal Inch) | 3.1500 |
| Includes | Clamping Screws; Drive Ring |
