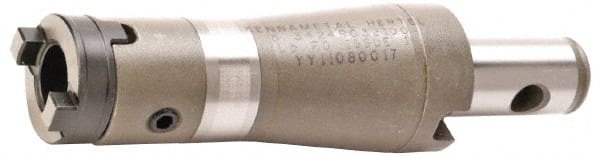

Kennametal - Drilling Head Reducers Series: HTS Reduced Connection Size: 40
Item #: 73162448
Brand: Kennametal
Model #: 1134666
Exact Tooling IR#: 04
Product Specifications
Drilling Head Reducers; Series: HTS ; Reduced Connection Size: 40 ; Shank Connection Size: 50 ; Projection (Decimal Inch): 6.4500 ; Projection (mm): 163.83 ; Nose Diameter (mm): 69.60
| Series | HTS |
| Reduced Connection Size | 40 |
| Shank Connection Size | 50 |
| Projection (Decimal Inch) | 6.4500 |
| Projection (mm) | 163.83 |
| Nose Diameter (mm) | 69.60 |
| Nose Diameter (Decimal Inch) | 2.7400 |
| Body Length (mm) | 150.11 |
| Body Length (Decimal Inch) | 5.9100 |
| Maximum Diameter (mm) | 80.01 |
| Maximum Diameter (Decimal Inch) | 3.1500 |
| Includes | Clamping Screws; Drive Ring |
