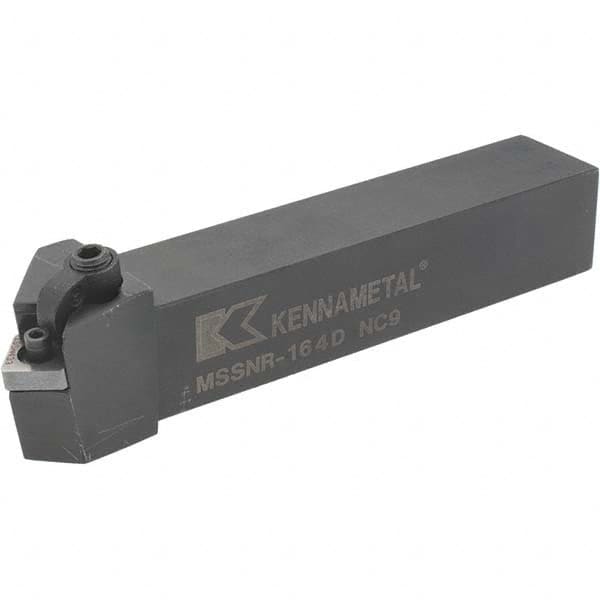

Kennametal - RH MSSN Negative Rake Indexable Turning Toolholder
Item #: 73163289
Brand: Kennametal
Model #: 1096041
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | MSSN |
| Rake | Negative |
| Series | Kenloc |
| Lead Angle | 45 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9120 |
| Head Length (Decimal Inch) | 1.2400 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 152.40 |
