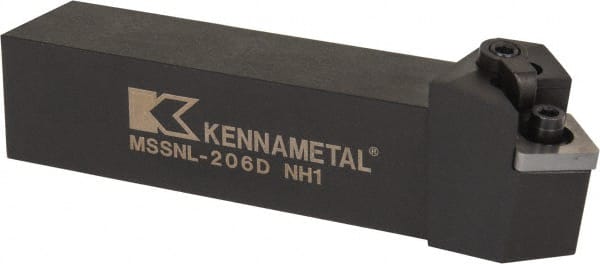

Kennametal - MSSN, Left Hand Cut, 45° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, SN..64. Insert Compatibility, Series Kenloc
Item #: 73163354
Brand: Kennametal
Model #: 1096049
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MSSN |
| Rake | Negative |
| Series | Kenloc |
| Lead Angle | 45 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SN..64. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9920 |
| Head Length (Decimal Inch) | 1.4800 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
