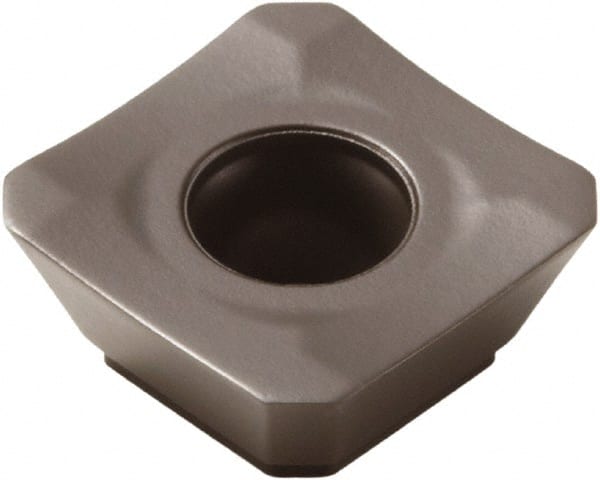

Seco - SEEX09T3 M08 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 0.156" Thick, 3/8" Inscribed Circle
Item #: 73183691
Brand: Seco
Model #: 18737
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 09T3 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M08 |
| ISO Number | SEEX09T3AFTN-M08 |
