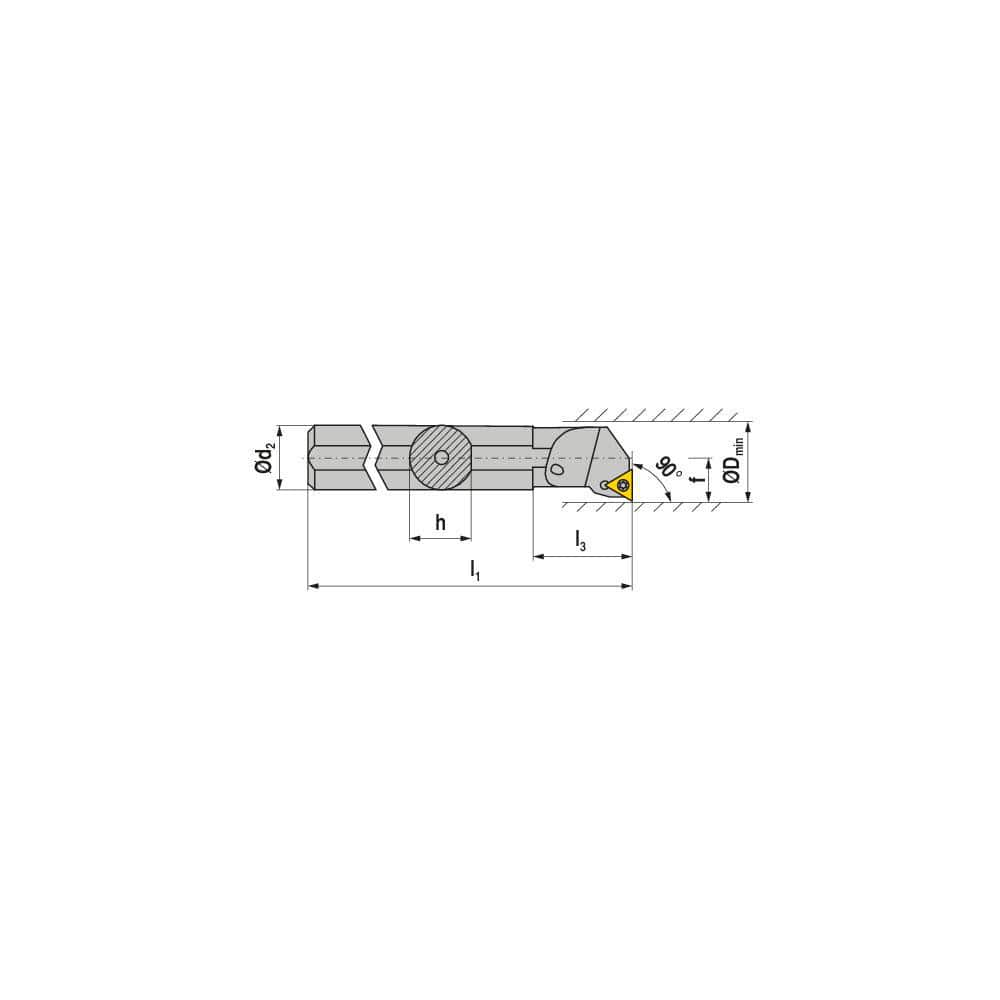

Indexable Boring Bar: S08M STFCL 2, 90.00° N/A Steel 6.0000″ OAL, Screw Clamping,
Item #: 73200537
Brand: Ceratizit
Model #: 7872520818
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.6250 |
| Minimum Bore Diameter (Inch) | 5/8 |
| Maximum Bore Depth (Decimal Inch) | 0.8000 |
| Toolholder Style | STFCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 6.00 |
| Overall Length (Inch) | 6 |
| Compatible Insert Size Code | TC..21.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 90.00 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3122 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
