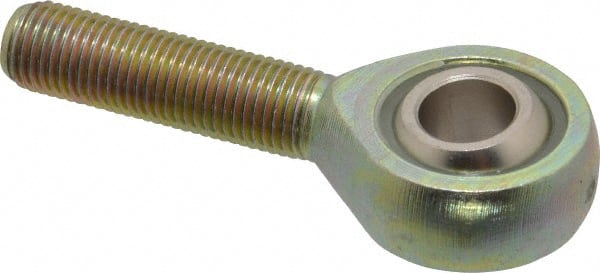

Alinabal - 3/8" ID, 1" Max OD, 3,200 Lb Max Static Cap, Spherical Rod End - 3/8-24 RH, 0.562" Shank Diam, 1-1/4" Shank Length, Steel with Molded Nyloy Raceway
Item #: 73205155
Brand: Alinabal
Model #: PM6G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3750 |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Static Load Capacity (Pounds) | 3200.0 |
| Width (Decimal Inch) | 0.5000 |
| Thread Size | 3/8-24 |
| Material | Steel |
| Shank Diameter (Decimal Inch) | 0.5620 |
| Raceway Material | Molded Nyloy |
| Shank Length (Decimal Inch) | 1.2500 |
| Thread Direction | Right Hand |
