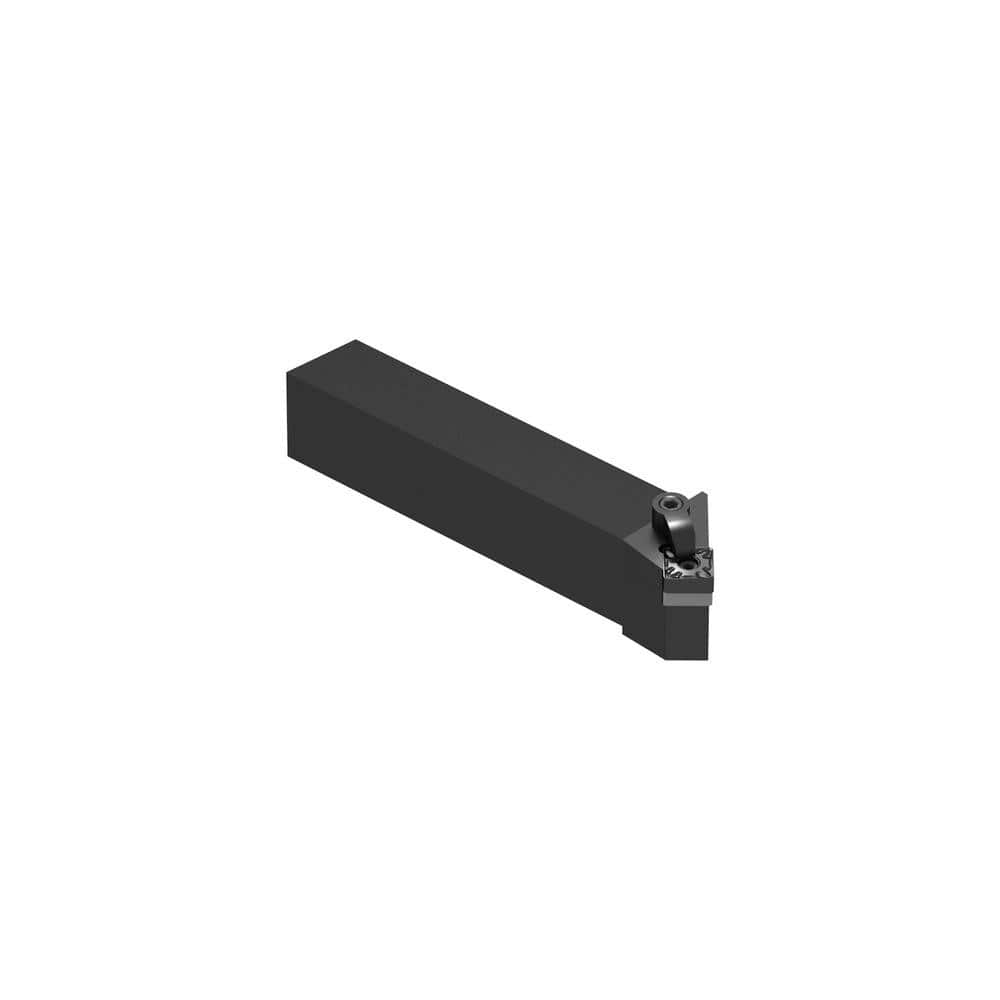

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: SN..54.; Toolholder Style: MSSNL; Rake: Negative; Rake Angle: 0; Multi-use Tool: No; Lead Angle: 45.0; Insert Holding Method: Wedge; Shank Width (Decimal Inch): 1.00
Item #: 73280414
Brand: Ceratizit
Model #: 7853701645
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | SN..54. |
| Toolholder Style | MSSNL |
| Rake | Negative |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Lead Angle | 45.0 |
| Insert Holding Method | Wedge |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | MAXILOCK M |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8469 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.6248 |
| Insert Width (Decimal Inch) | 0.6248 |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.2500 |
