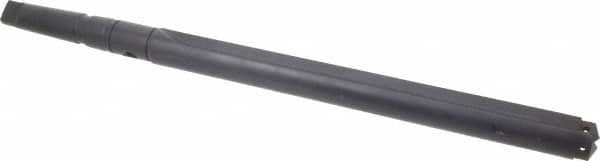

Allied Machine and Engineering - Series 3, 1-13/32 to 1-7/8" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 13-3/4" Max Depth, 17-1/8" Body Length, 21-9/16" OAL, Extended Length, Through Coolant
Item #: 73302218
Brand: Allied Machine and Engineering
Model #: 25030S-004I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 3 |
| Minimum Drill Diameter (Inch) | 1-13/32 |
| Maximum Drill Diameter (Inch) | 1-7/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 21-9/16 |
| Maximum Drill Depth (Inch) | 13-3/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 15 |
| Body Length (Inch) | 17-1/8 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-4SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
