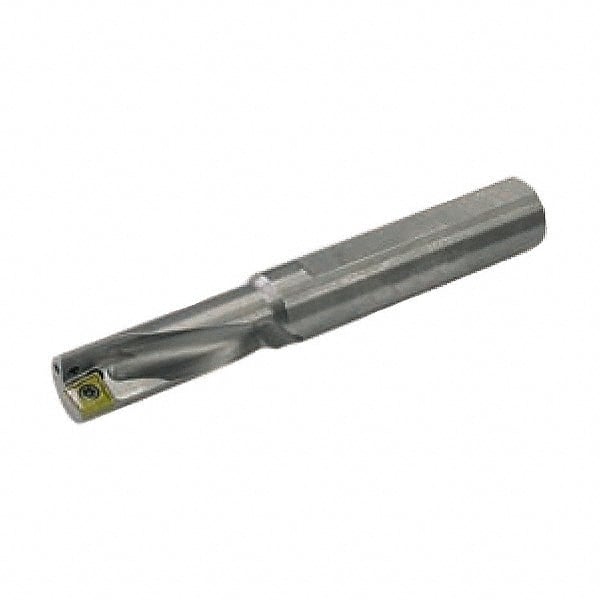

Allied Machine and Engineering - 3.78" Max Drill Depth, 3xD, 32mm Diam, Indexable Insert Drill - 1 Insert, 1-1/2" Shank Diam, Straight Shank
Item #: 73336455
Brand: Allied Machine and Engineering
Model #: 11147336
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 32.00 |
| Drill Diameter (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (Decimal Inch) | 3.7800 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.6300 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 1.2990 |
| Overall Length/Projection (Decimal Inch) | 7.2800 |
| Insert Compatibility | XCET 170508FN-27P; XCET 170508FN-27Q; XCNT 170508EN; XCNT 170508EN-M50Q |
| Flute Length (Decimal Inch) | 3.7800 |
| Shank Length (Decimal Inch) | 3.5000 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
