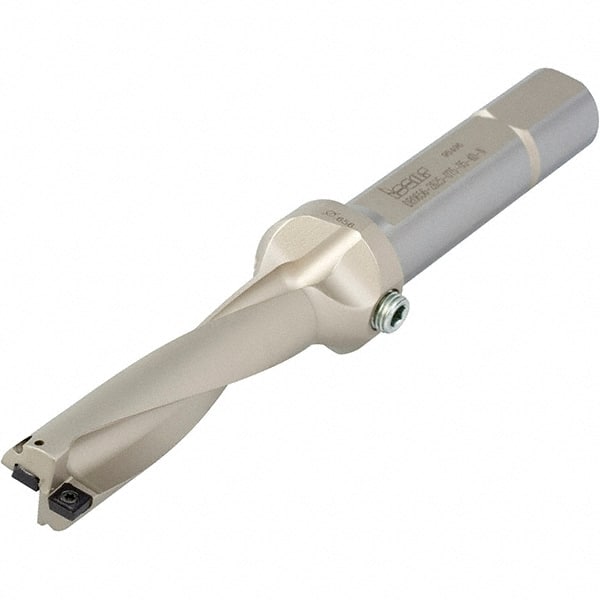

Iscar - 4.37" Max Drill Depth, 5xD, 7/8" Diam, Indexable Insert Drill - 1" Shank Diam, Straight Shank
Item #: 73363780
Brand: Iscar
Model #: 3202587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 4.3700 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Diameter (Decimal Inch) | 0.9590 |
| Overall Length/Projection (Decimal Inch) | 8.2200 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 5.2200 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.2500 |
| Series | DR-TWIST |
