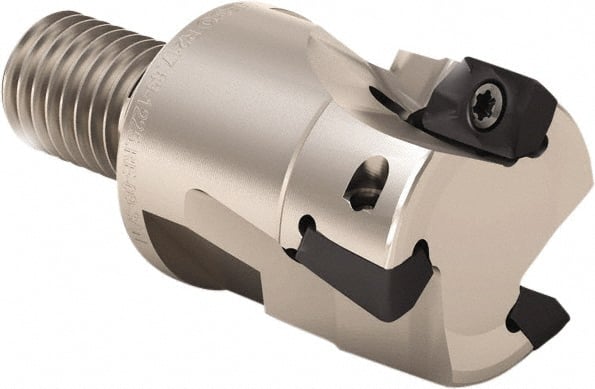

Seco - 3/4" Cut Diam, 0.433" Max Depth of Cut, 1.37" OAL, Indexable Square Shoulder End Mill - XO.X 1204 Inserts, M10 Modular Connection, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 73364309
Brand: Seco
Model #: 52584
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (Decimal Inch) | 1.3700 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.X 1204 |
| Maximum RPM | 23200 |
