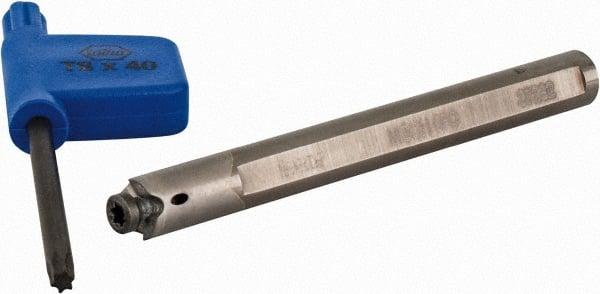

Iscar - MGCH, Internal, 1.5mm Max Depth of Cut, 0.5 to 4mm Groove Width, Indexable Grooving Tool Holder - GIQ.. Insert Compatibility, 6mm Shank Width, 62mm OAL, Through Coolant
Item #: 73383101
Brand: Iscar
Model #: 2801658
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Toolholder Style | MGCH |
| Insert Compatibility | GIQ.. |
| Shank Width/Diameter (mm) | 6.00 |
| Shank Width/Diameter (Decimal Inch) | 0.2362 |
| Series | ChamGroove |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 8.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.3150 |
| Center to Cutting Edge (mm) | 4.80 |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Complete Insert Compatibility | GIQL 11-0.75-0.00; GIQL 11-0.85-0.00; GIQL 11-0.95-0.00; GIQL 11-1.04-0.05; GIQL 11-1.20-0.05; GIQL 11-1.20-R060; GIQL 11-1.40-0.05; GIQL 11-1.50-0.05; GIQL 11-1.70-0.05; GIQL 11-1.80-R090; GIQL 11-1.96-0.10; GIQL 11-15-1.50-0.05; GIQL 11-15-2.00-0.10 |
