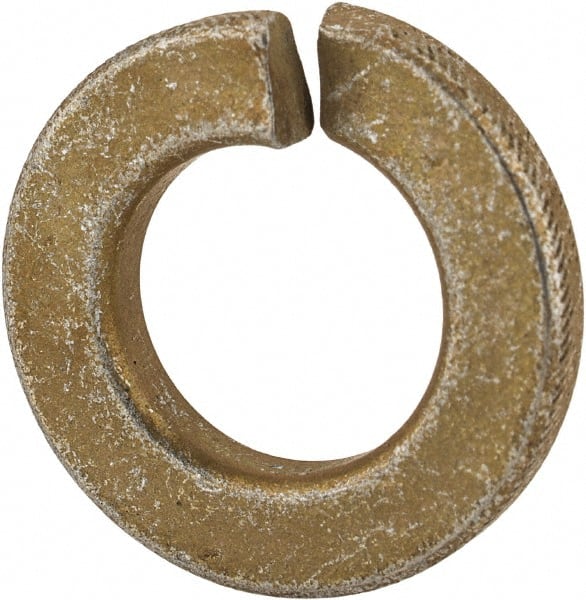

Made in USA - 3/8", 0.094" Thick Split Lock Washer - 1060 Spring Steel, Zinc Yellow Dichromate Finish, 0.377" Min ID, 0.385" Max ID, 0.68" Max OD
Item #: 73409591
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 3/8 |
| Material | Spring Steel |
| Material Grade | 1060 |
| Finish/Coating | Zinc Yellow Dichromate |
| Thickness (Decimal Inch) | 0.0940 |
| Minimum Inside Diameter (Decimal Inch) | 0.3770 |
| Maximum Inside Diameter (Decimal Inch) | 0.3850 |
| Maximum Outside Diameter (Decimal Inch) | 0.6800 |
| Military Specification | Meets Military Specifications |
| Maximum Thickness (Decimal Inch) | 0.1040 |
| Fastener Standard | MS35338 |
