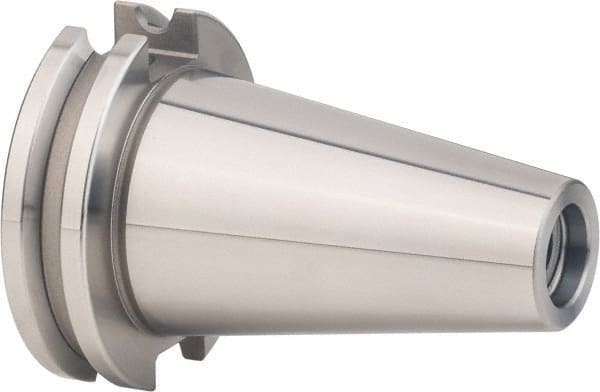

Accupro - 0.078" to 0.787" Capacity, 3/4" Projection, CAT40 Taper Shank, ER32 Collet Chuck - 0.0002" TIR, Through-Spindle
Item #: 73449993
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 0.7500 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.5600 |
