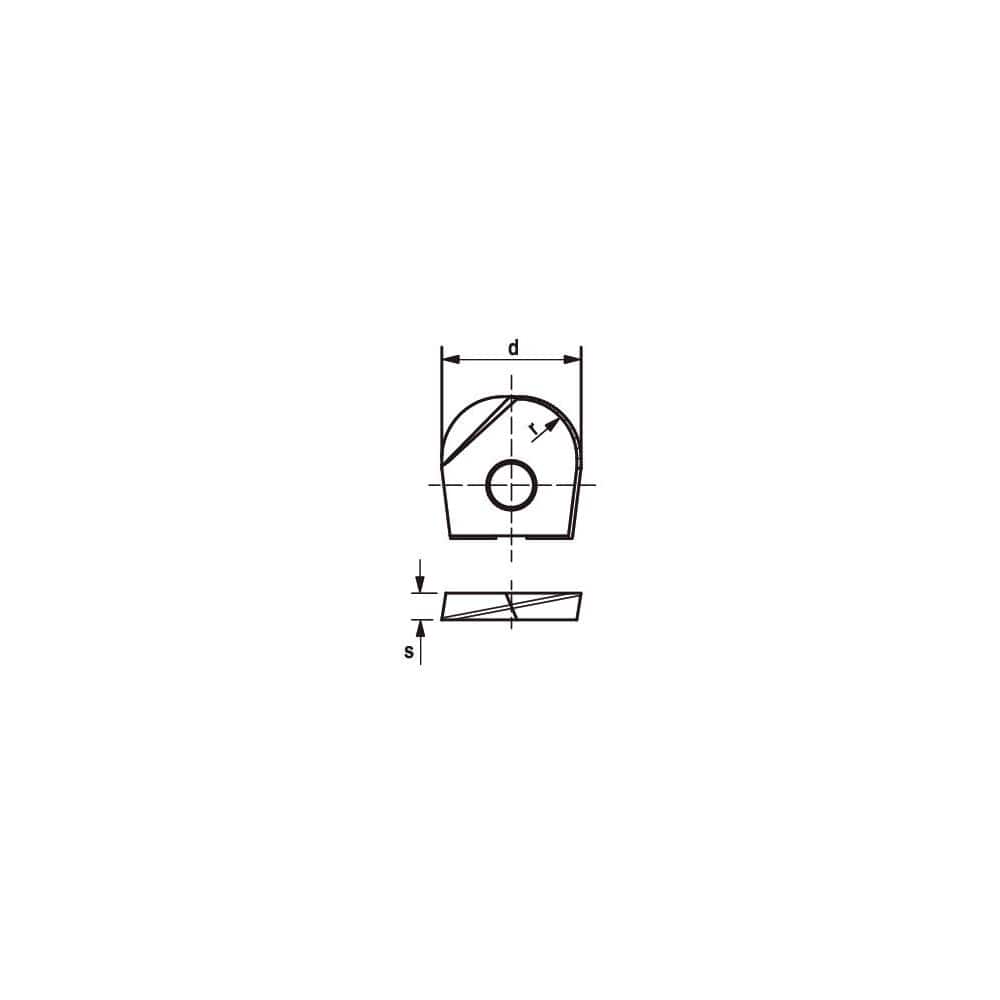

Milling Insert: XOHX 102540-FM1 CTPP216, CTPP216, Solid Carbide N/A Finish,
Item #: 73558645
Brand: Ceratizit
Model #: 5616992400
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 1025 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP216 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Hand | Neutral |
| Series | XOHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4528 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S; M; N; O |
| Iso Code | XOHX 102540-FM1 CTPP216 |
| Chip Breaker | FM1 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
