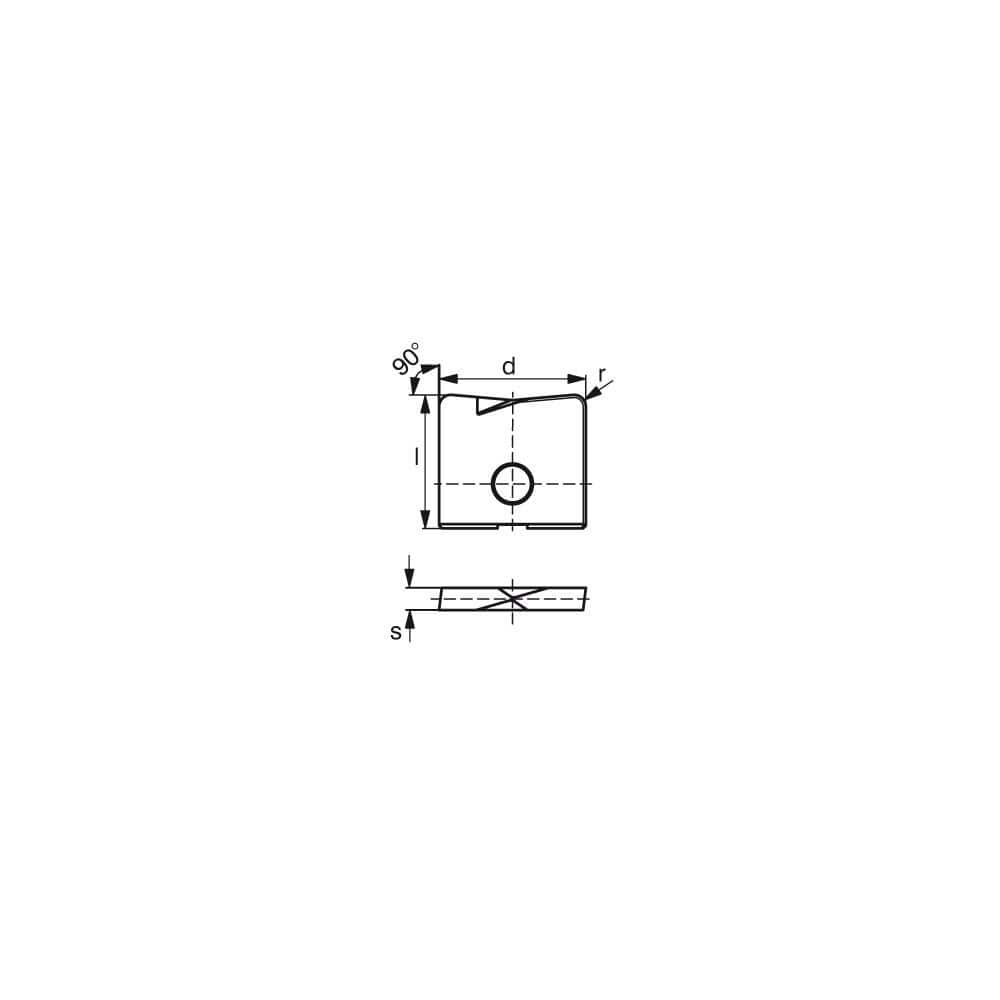

Milling Insert: XOHX 325025-FM5 CTPP216, CTPP216, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 73560609
Brand: Ceratizit
Model #: 5615977600
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 3250 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPP216 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | XOHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 0.4725 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 1.1024 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; M; N; O |
| Iso Code | XOHX 325025-FM5 CTPP216 |
| Chip Breaker | FM5 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
