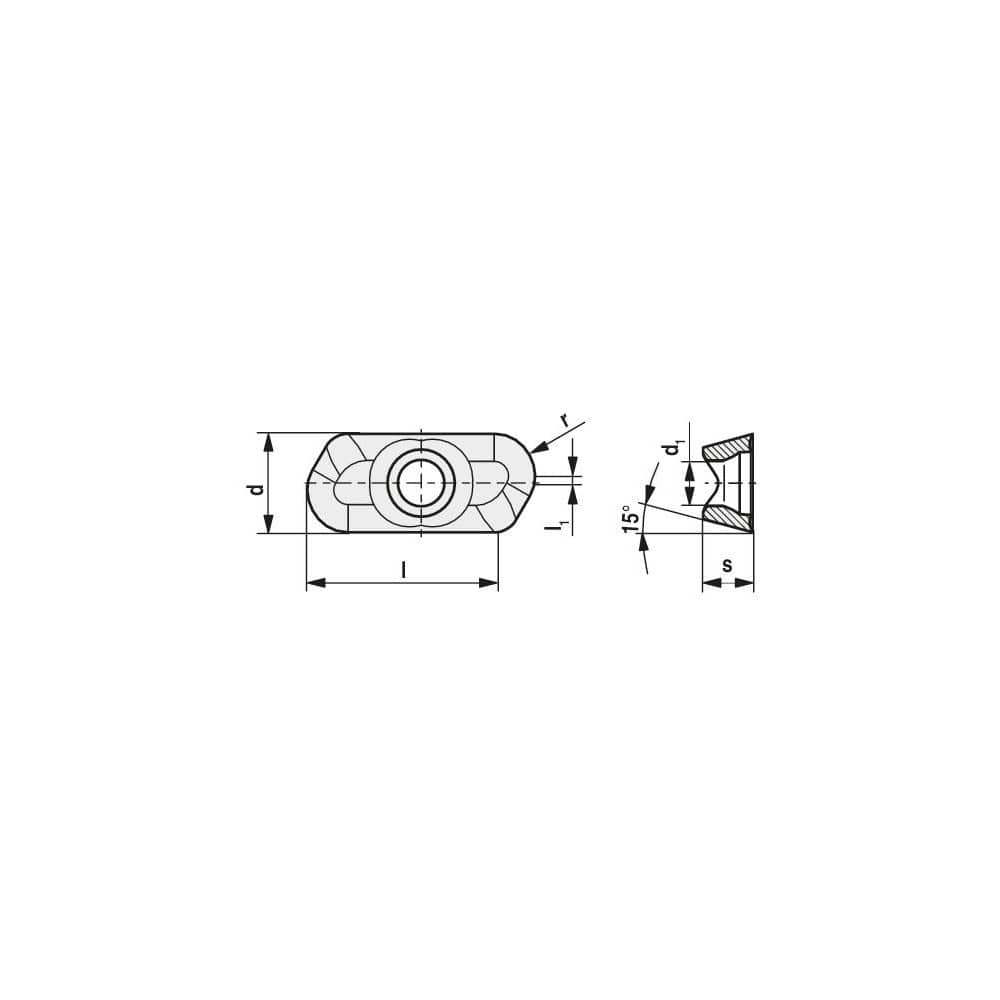

Milling Insert: XDHX 190408FR-27P H216T, H216T, Solid Carbide N/A Finish,
Item #: 73573701
Brand: Ceratizit
Model #: 50488556
Product Specifications
| Insert Style | XDHX |
| Insert Size Code | 1904 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | H216T |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDHX |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1831 |
| Maximum Depth of Cut (Decimal Inch) | 0.5606 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.7480 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | XDHX 190408FR-27P H216T |
| Chip Breaker | 27P |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
