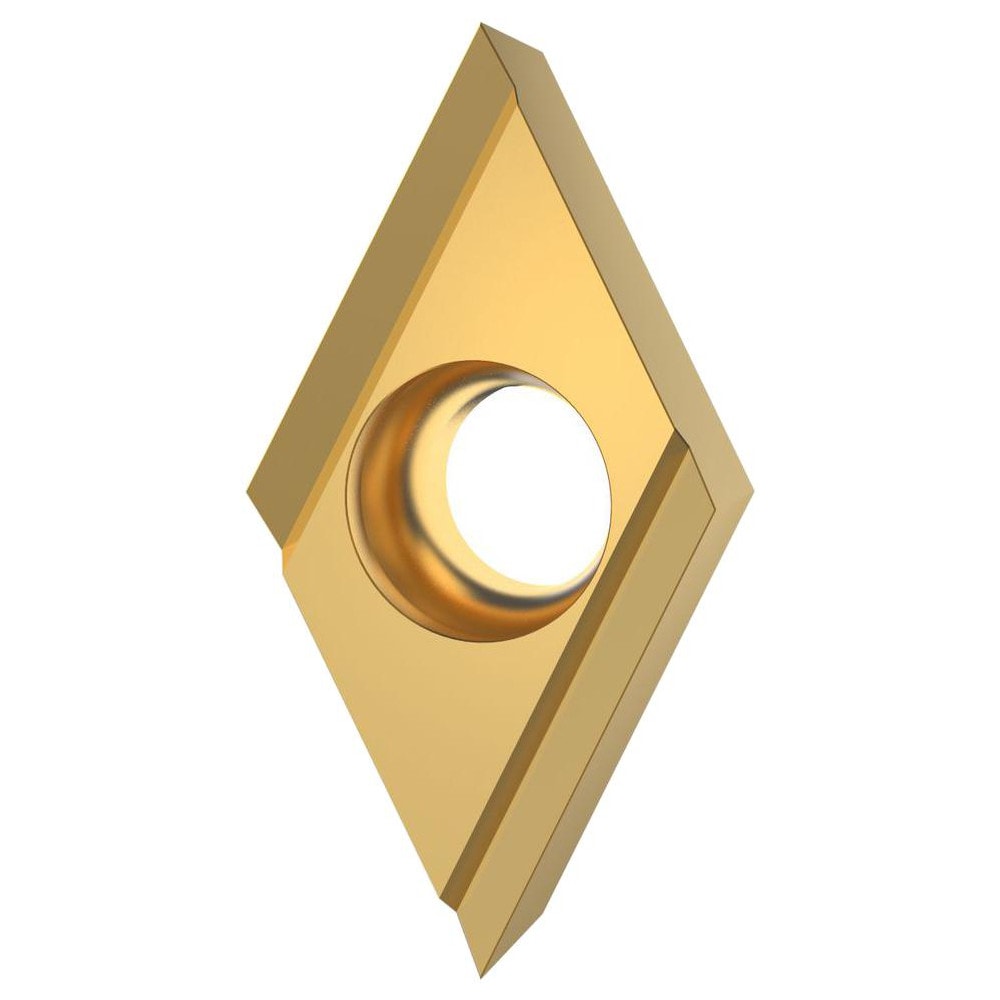

Turning Insert: DCET21502RPPS KTP25S, Carbide
Item #: 95242558
Brand: Kennametal
Model #: 7161053
Product Specifications
| ANSI Insert Code | DCET21502 |
| ISO Insert Code | DCET070201 |
| Relief Angle | 7.000 |
| Insert Style | DCET |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 80.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 3/32 |
| Series | DCET |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | E |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3058 |
| Iso Code | DCET070201RPPS |
| Manufacturers Catalog Number | DCET21502RPPS KTP25S |
| Chip Breaker | PPS |
| ANSI Size Code | 21502 |
| ISO Size Code | 070201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21502 |
| Country of Origin | Japan |
