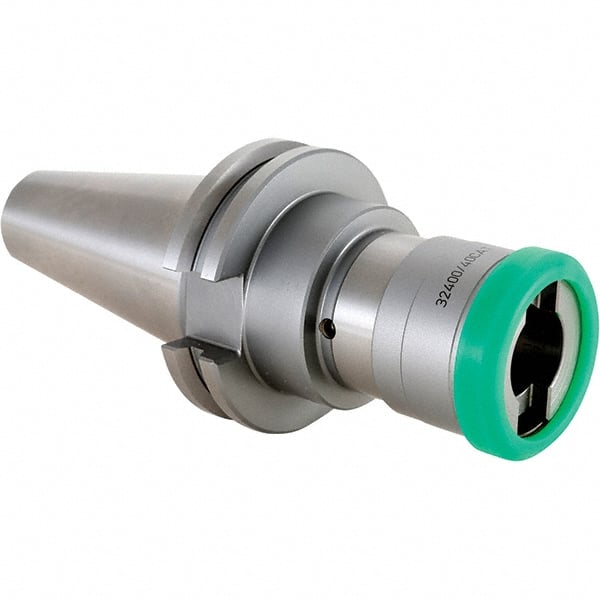

Techniks - BT30 Taper Shank Tension & Compression Tapping Chuck - #0 to 9/16" Tap Capacity, 2.48" Projection, Quick Change
Item #: 73589947
Brand: Techniks
Model #: 32400/30BT
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Projection (Decimal Inch) | 2.4800 |
| Quick Change | Yes |
| Minimum Collet Capacity (mm) | M1.6-M3.5 |
| Minimum Collet Capacity (Inch) | #0; #6 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Maximum Collet Capacity (mm) | M14 |
| Overall Length (Decimal Inch) | 4.3860 |
