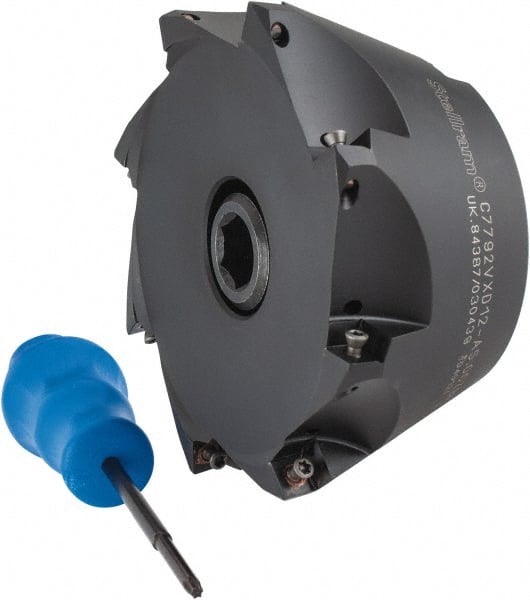

Kennametal - 5" Cut Diam, 0.098" Max Depth, 1-1/2" Arbor Hole, 8 Inserts, XD 12 Insert Style, Indexable Copy Face Mill - C7792VXD12-A5.00Z08R Cutter Style, 2.48" High, Through Coolant, Series 7792
Item #: 73617193
Brand: Kennametal
Model #: 5667476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.4800 |
| Series | 7792 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | XD 12 |
| Cutter Style | C7792VXD12-A5.00Z08R |
| Through Coolant | Yes |
