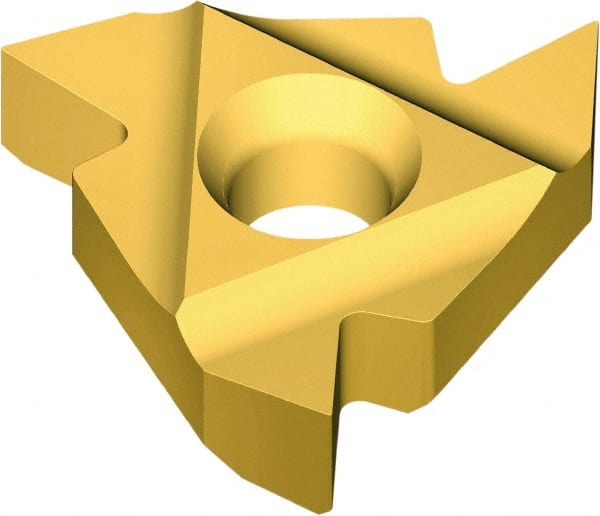

Vargus - 3IR Internal Right Hand 11.5 UN Laydown Threading Insert - Grade VKX, TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 73673535
Brand: Vargus
Model #: 52371
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 3IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Threads Per Inch | 11.5 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.60 |
| Included Angle of Threading Tip | 60 |
| Coating | TiN |
| Coating Process | PVD |
| Number of Teeth Per Side | 1 |
