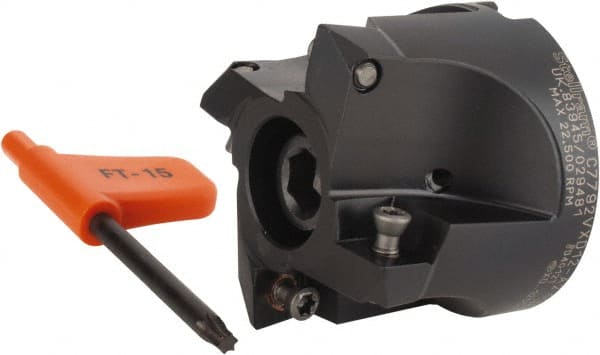

Kennametal - 2" Cut Diam, 0.098" Max Depth, 3/4" Arbor Hole, 4 Inserts, XD 12 Insert Style, Indexable Copy Face Mill - C7792VXD12-A2.00Z04R Cutter Style, 1.574" High, Through Coolant, Series 7792
Item #: 73680738
Brand: Kennametal
Model #: 5667404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5740 |
| Series | 7792 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | XD 12 |
| Cutter Style | C7792VXD12-A2.00Z04R |
| Through Coolant | Yes |
