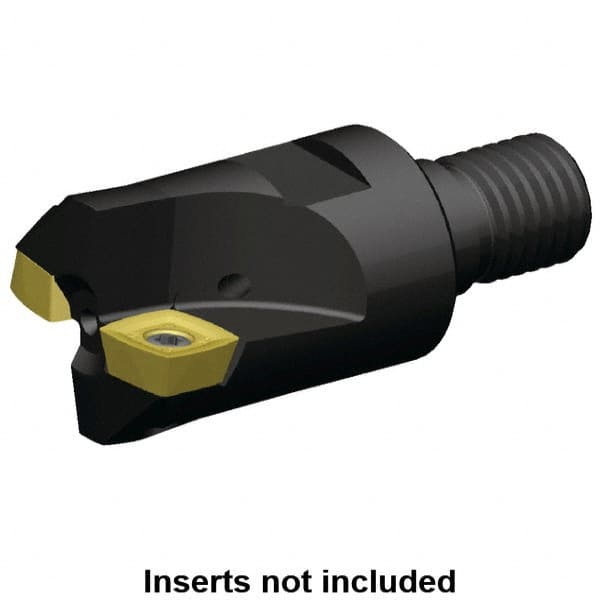

Kennametal - 1-1/2" Cutting Diam, Modular Connection Indexable Copy End Mill - 3 Inserts, XDLT1205 Insert, A7792VXD12SA1.5Z3R1.7 Toolholder
Item #: 73681074
Brand: Kennametal
Model #: 5667487
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 3 |
| Insert Style | XDLT1205 |
| Toolholder Style | A7792VXD12SA1.5Z3R1.7 |
| Overall Length (Decimal Inch) | 1.7500 |
| Modular Connection Thread Size | M16 |
| Series | 7792 |
