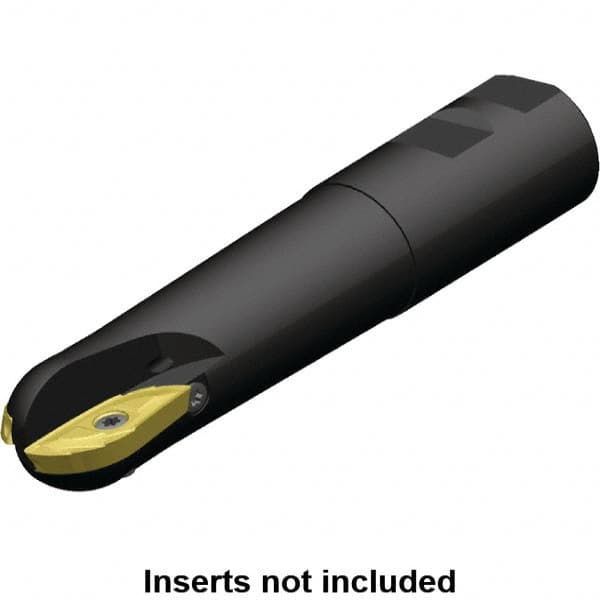

Kennametal - 2" Cut Diam, 2" Max Depth of Cut, 2" Shank Diam, 9.328" OAL, Indexable Ball Nose End Mill - Weldon Flat Shank, C5505VX Toolholder, XPNT Insert
Item #: 73682999
Brand: Kennametal
Model #: 5673111
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 2.0000 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT |
| Toolholder Style | C5505VX |
| Series | 5505 |
| Overall Length (Decimal Inch) | 9.3280 |
| Number of Side Inserts Used on Toolholder | 0 |
