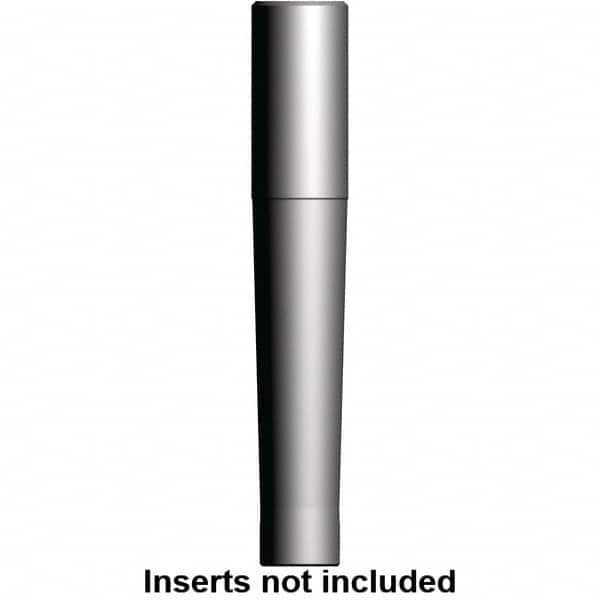

Kennametal - 1" Straight Shank Milling Tip Insert Holder & Shank - 6" Projection, 0.827" Neck Diam, M12 Neck Thread, 0.827" Nose Diam, 8.11" OAL, Tungsten Alloy M-21 Tool Holder
Item #: 73752065
Brand: Kennametal
Model #: 5673588
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | None |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Projection (Decimal Inch) | 6.0000 |
| Neck Diameter (Decimal Inch) | 0.8270 |
| Neck Thread Size | M12 |
| Nose Diameter (Decimal Inch) | 0.8270 |
| Toolholder Material | Tungsten Alloy |
| Overall Length (Decimal Inch) | 8.1100 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 6.0000 |
| Extension Length (Decimal Inch) | 6.0000 |
| Maximum Diameter (Decimal Inch) | 1.0000 |
| Shank Shape | Straight |
| Thread Size Connection to Shank | M12 |
| Toolholder Style | M-21 |
