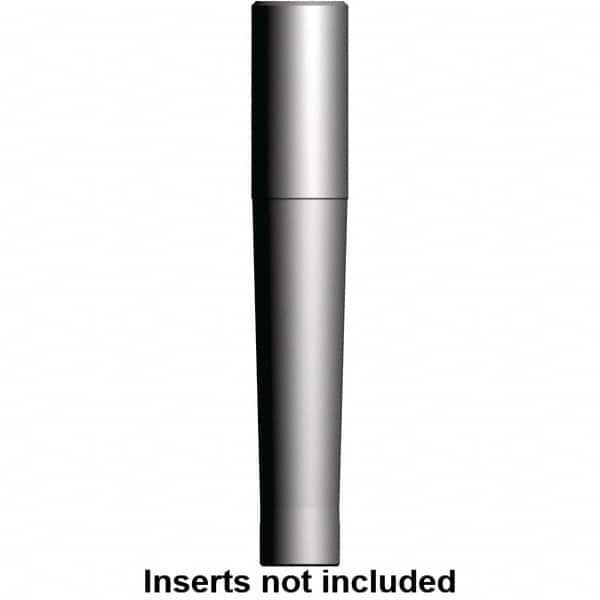

Kennametal - 3/4" Straight Shank Milling Tip Insert Holder & Shank - 2-1/2" Projection, 0.79" Neck Diam, M10 Neck Thread, 0.709" Nose Diam, 4.331" OAL, Tungsten Alloy M-18 Tool Holder
Item #: 73752099
Brand: Kennametal
Model #: 5672470
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | None |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.75 |
| Projection (Decimal Inch) | 2.5000 |
| Neck Diameter (Decimal Inch) | 0.7090 |
| Neck Thread Size | M10 |
| Nose Diameter (Decimal Inch) | 0.7090 |
| Toolholder Material | Tungsten Alloy |
| Overall Length (Decimal Inch) | 4.3310 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 2.5000 |
| Extension Length (Decimal Inch) | 2.5000 |
| Maximum Diameter (Decimal Inch) | 0.7500 |
| Shank Shape | Straight |
| Thread Size Connection to Shank | M10 |
| Toolholder Style | M-18 |
