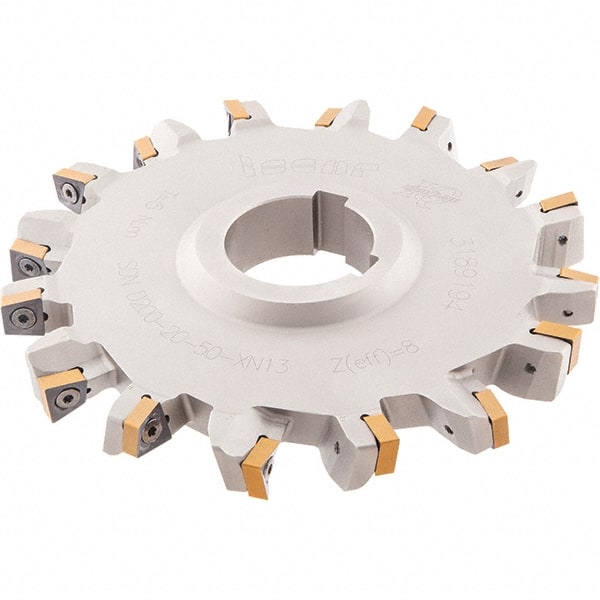

Iscar - Arbor Hole Connection, 3/4" Cutting Width, 2.425" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 8 Tooth Indexable Slotting Cutter - SDN-XN13 Toolholder, XNMU 13 Insert, Neutral Cutting Direction
Item #: 73794950
Brand: Iscar
Model #: 3106751
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 2.4250 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 8 |
| Toolholder Style | SDN-XN13 |
| Series | Helislot(SDN-XN13) |
| Insert Style | XNMU 13 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Radius | No |
| Manufacturers Catalog Number | SDN D8.0-0.75-16-XN13 |
| Complete Insert Compatibility1 | XNMU 130608PNN-MM; XNMU 130608PNTN |
