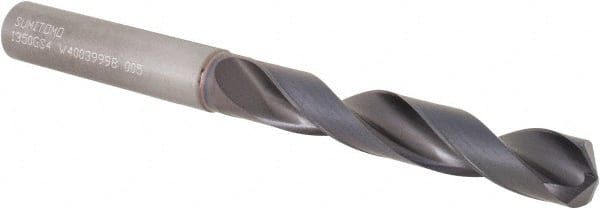

Sumitomo - 13.5mm Solid Carbide, 135° Point, Maintenance Drill Bit
Item #: 70790399
Brand: Sumitomo
Model #: 5UHY257
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum chromium (TiAlCr) and titanium silicon (TiSi) is a super multi-layered coating. The TiAlCr/TiSi coating is used for general purpose applications without coolant thru.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Size (mm) | 13.50 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlCr/TiSi |
| Overall Length (Decimal Inch) | 5.7874 |
| Overall Length (mm) | 147.00 |
| Flute Length (Decimal Inch) | 3.3071 |
| Through Coolant | No |
| Web Configuration | Tapered |
