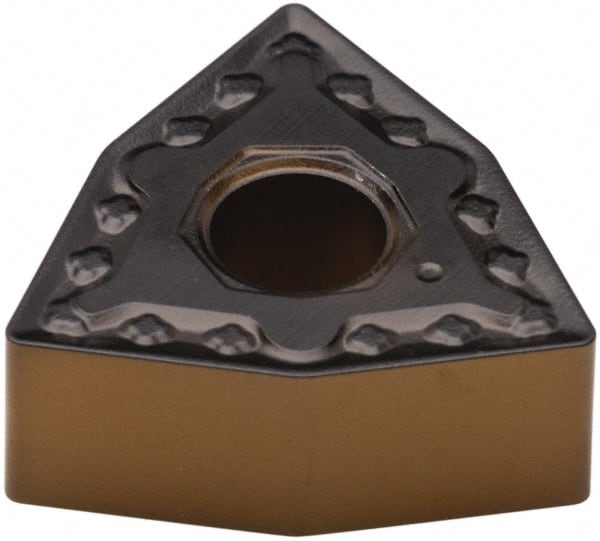

Walter - WNMG542 NM4 Grade WPP30 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 73819278
Brand: Walter
Model #: 5092482
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 542 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WPP30 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | C6 |
| Chip Breaker | NM4 |
| Hole Diameter (mm) | 6.38 |
| Hole Diameter (Decimal Inch) | 0.2512 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
