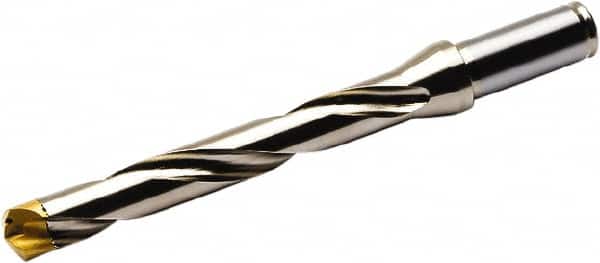

Seco - 18 to 18.99mm Diam, 7xD, 130mm Max Depth, 20mm Shank Diam, 145.5mm Flute, 213.5mm OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 73824633
Brand: Seco
Model #: 05094
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 5.1181 |
| Maximum Drill Depth (mm) | 130.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 145.50 |
| Flute Length (Decimal Inch) | 5.7283 |
| Body Length (mm) | 163.50 |
| Body Length (Decimal Inch) | 6.4370 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 213.50 |
| Overall Length (Decimal Inch) | 8.4055 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
