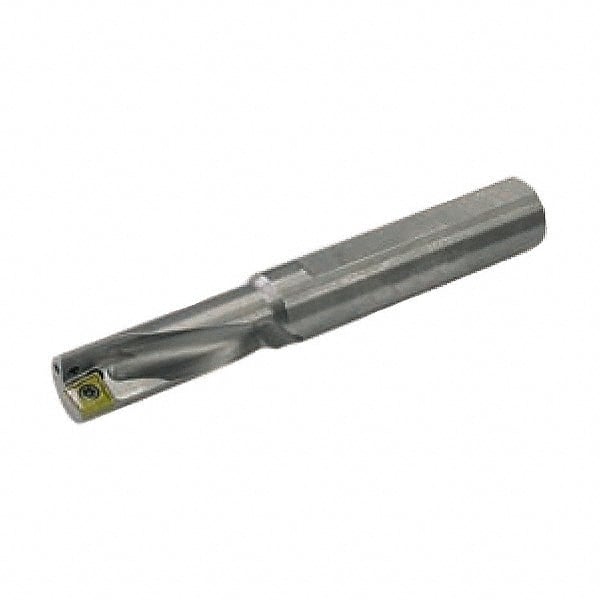

Allied Machine and Engineering - 1.42" Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill - 1 Insert, 5/8" Shank Diam, Straight Shank
Item #: 73871410
Brand: Allied Machine and Engineering
Model #: 11147314
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.2360 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.5710 |
| Overall Length/Projection (Decimal Inch) | 3.7400 |
| Insert Compatibility | XCET 060202FN-27P; XCET 060204FN-27P; XCET 060204FN-27Q; XCNT 060202EN; XCNT 060204EN |
| Flute Length (Decimal Inch) | 1.4200 |
| Shank Length (Decimal Inch) | 2.3200 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
