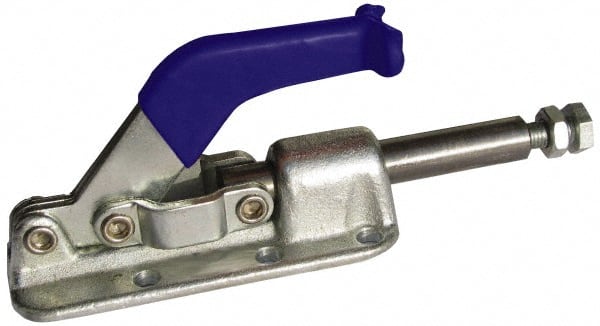

Gibraltar - 2,500 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 6 Mounting Holes, 0.33" Mounting Hole Diam, 0.63" Plunger Diam, Straight Handle
Item #: 73953010
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 2500.00 |
| Plunger Travel (Decimal Inch) | 2.0000 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (Decimal Inch) | 0.8300 |
| Plunger Diameter (Decimal Inch) | 0.6300 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 7.0600 |
| Overall Height (Decimal Inch) | 2.8800 |
| Base Length (Decimal Inch) | 5.0600 |
| Base Width (Decimal Inch) | 2.2500 |
| Handle Color | Blue |
| Number of Mounting Holes | 6 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Mounting Hole Diameter (Decimal Inch) | 0.3300 |
