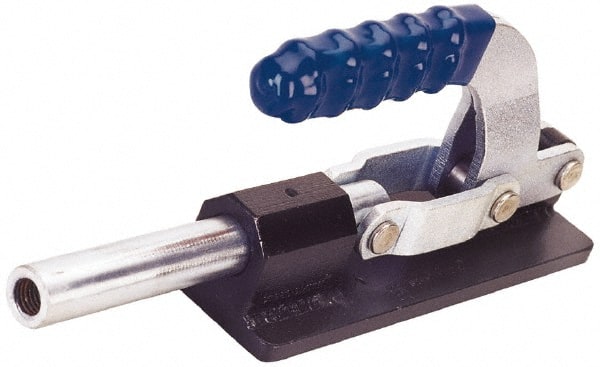

Gibraltar - 7,500 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 6 Mounting Holes, 0.41" Mounting Hole Diam, 0.87" Plunger Diam, Straight Handle
Item #: 73953176
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 33361.70 |
| Load Capacity (Lb.) | 7500.00 |
| Plunger Travel (mm) | 101.60 |
| Plunger Travel (Decimal Inch) | 4.0000 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 1/2-13 |
| Plunger Centerline Height (mm) | 31.75 |
| Plunger Centerline Height (Decimal Inch) | 1.2500 |
| Plunger Diameter (Decimal Inch) | 0.8700 |
| Plunger Diameter (mm) | 22.10 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 12.6500 |
| Overall Height (Decimal Inch) | 4.2800 |
| Base Length (Decimal Inch) | 8.5300 |
| Base Width (Decimal Inch) | 3.0000 |
| Handle Color | Blue |
| Number of Mounting Holes | 6 |
| Length Distance Between Mount Holes (mm) | 90.40 |
| Length Distance Between Mount Holes (Decimal Inch) | 3.5591 |
| Width Distance Between Mount Holes (mm) | 54.10 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.1300 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter (Decimal Inch) | 0.4100 |
| Base Width (mm) | 76.20 |
| Base Length (mm) | 216.66 |
| Overall Length (mm) | 321.31 |
| Overall Height (mm) | 108.71 |
| Maximum Mechanical Advantage | 35:1 |
