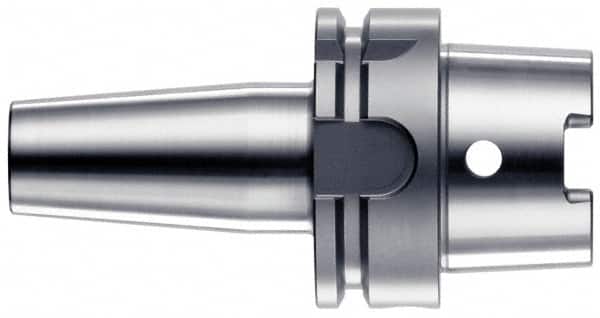

Bilz - 3/4" Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 100.08mm Projection, 32.99mm Nose Diam, 51.99mm Clamping Depth, 18,000 RPM, Through Coolant
Item #: 73966749
Brand: Bilz
Model #: 6726428
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Hole Diameter (Inch) | 3/4 |
| Projection (mm) | 100.08 |
| Projection (Decimal Inch) | 3.9400 |
| Nose Diameter (mm) | 32.99 |
| Nose Diameter (Decimal Inch) | 1.2990 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 51.99 |
| Clamping Depth (Decimal Inch) | 2.0470 |
| Balanced to (RPM) | 18000 |
