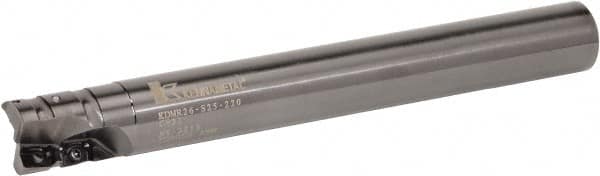

Kennametal - 16mm Cut Diam, 19mm Max Depth of Cut, 16mm Shank Diam, 190mm OAL, Indexable Square Shoulder Helical End Mill - GOMT 08T2.., JOMT 08T2.. Inserts, Cylindrical Shank, 0° Lead Angle, Series KDMR
Item #: 74001272
Brand: Kennametal
Model #: 3587021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 190.00 |
| Overall Length/Projection (Decimal Inch) | 7.4803 |
| Lead Angle | 0 |
| Series | KDMR |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | KDMR |
| Number of Flutes | 2 |
| Head Length (mm) | 61.00 |
| Head Length (Decimal Inch) | 2.4016 |
| Weldon Flat | No |
| Insert Compatibility | GOMT 08T2..; JOMT 08T2.. |
| Shank Length (Decimal Inch) | 5.0787 |
| Shank Length (mm) | 129.00 |
