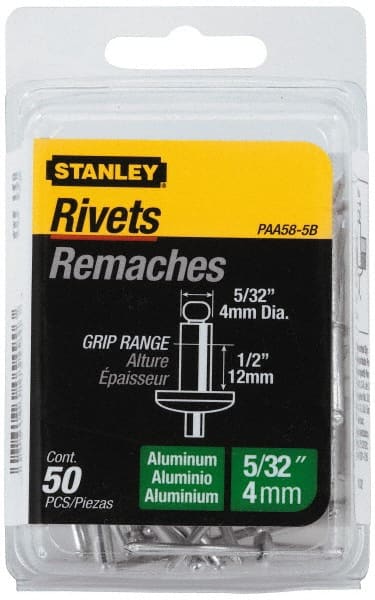

Stanley - Aluminum Color Coded Blind Rivet - Aluminum Mandrel, 3/8" to 1/2" Grip, 5/16" Head Diam, 0.156" to 0.164" Hole Diam, 0.675" Length Under Head, 5/32" Body Diam
Item #: 74029547
Brand: Stanley
Model #: PAA58-5B
Exact Tooling IR#: 04
Features and Benefits
Color coded rivets are color coded based on material for easy identification.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Color Coded |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.3750 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Maximum Grip (Inch) | 1/2 |
| Head Diameter (Decimal Inch) | 0.3125 |
| Head Diameter (Inch) | 5/16 |
| Minimum Hole Diameter (Decimal Inch) | 0.1560 |
| Maximum Hole Diameter (Decimal Inch) | 0.1640 |
| Length Under Head (Decimal Inch) | 0.6750 |
| Body Diameter (Decimal Inch) | 0.1563 |
| Body Diameter (Inch) | 5/32 |
| Head Height (Decimal Inch) | 0.0500 |
